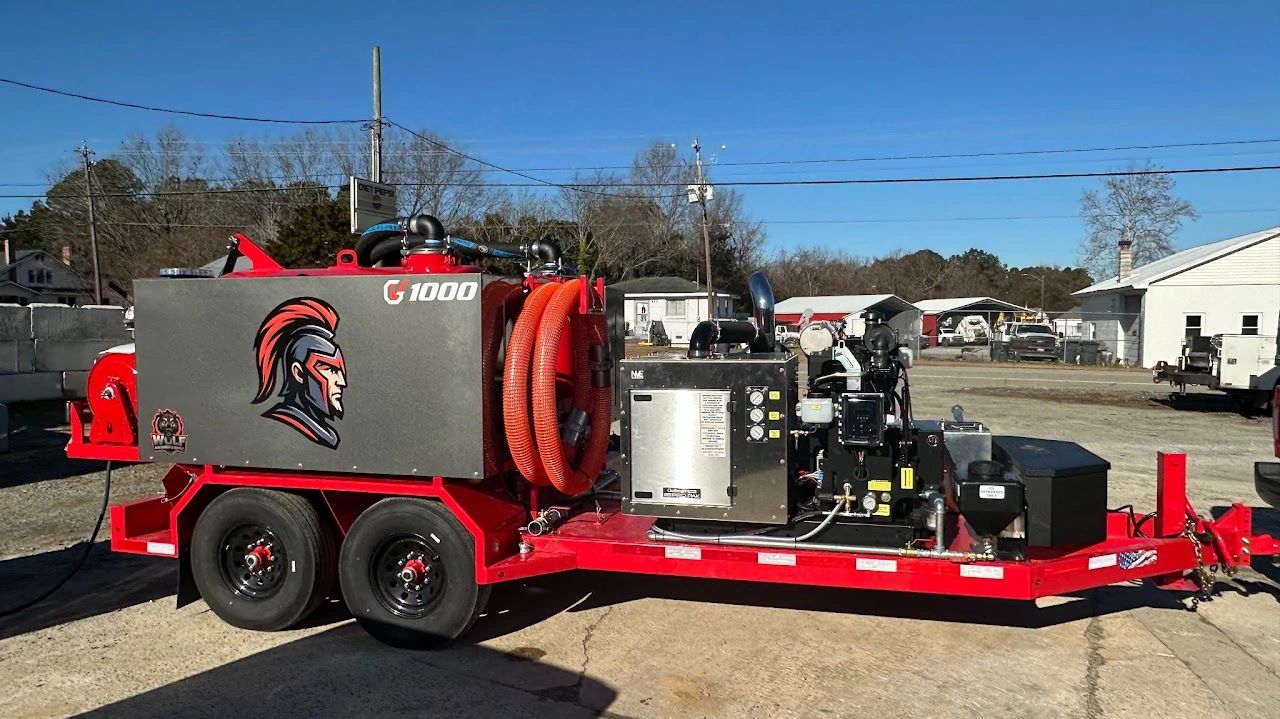

Gladiator GV1000 Mud Vac

The Gladiator GV1000 is the flagship vacuum excavator trailer in the Gladiator HDD lineup — a powerhouse piece of excavation equipment designed for contractors who demand maximum suction performance on the most challenging utility, pipeline, and directional drilling jobsites. Powered by a robust 69.3 HP water-cooled diesel engine, the GV1000 delivers an impressive 1,000 CFM of vacuum flow through a 4-inch, 30-foot hose, utilizing a Tri-Lobe blower operating at 27 inHg of suction pressure. This output nearly doubles that of the GV500, making it an essential tool for efficient mud vacuum system operations. Manufactured by Gladiator HDD, the GV1000 is the preferred mud vacuum excavator for contractors using large G-series HDD drills in high-production projects. It provides the raw suction power and sustained performance necessary to excel in the most demanding directional drilling operations and ensures effective operation of the vacuum system.

The Gladiator GV1000 is distinguished by its Tri-Lobe high-displacement blower, delivering 1,000 CFM at 27 inHg of suction pressure through a durable 4-inch, 30-foot hose. Equipped with a 0.5-micron filtration system, this vacuum excavator not only safeguards the blower but also guarantees clean discharge during each operation. Perfectly suited for use with HDD drills, this efficient mud vacuum system excels at swiftly moving thick slurry, heavy cuttings, or dense spoil without interruption.

The Gladiator GV1000 features an integrated high-pressure wash pump that delivers 4 GPM at 4,000 PSI and is adjustable for various excavation equipment needs, including HDD drills and vacuum excavators. With two water tanks totaling 400 gallons, it ensures a sufficient supply for extended hydro-excavation runs without interruption. Additionally, the standard internal wash-out system in the GV1000 allows for effective cleaning between jobs, making it an excellent choice for professionals using HDD drills and mud vacuum systems, as it streamlines operations without requiring extra setup or equipment.

The 650-gallon spoil tank, part of the Gladiator GV1000 series, features a robust design with a 1/4-inch wall thickness, rated to manage 15 PSI pressure and full vacuum. Equipped with a hydraulic door secured by eight manual wing nuts, this excavation equipment operates efficiently. The hydraulic scissor lift tilts the tank to a full 70-degree dump angle, steeper than other models like the GV500 series, ensuring thorough discharge even with thick or sticky spoil material. This makes it an ideal choice for HDD drills and an integral component of a mud vacuum system within a vacuum excavator setup.

The Gladiator GV1000 is engineered with durable dual 8,000 lb single wheel axles that feature oil bath hubs, complemented by 4-inch drop, 16-inch 8-hole steel wheels, and 235/80R 16-inch 14-ply tires, making it ideal for supporting HDD drills and other excavation equipment. Its 12 1/4-inch x 3 3/8-inch electric brakes, which come with a self-charging break-away system, ensure safe and controlled towing, preserving the integrity of your mud vacuum system on-site. Additionally, a 12,000 lb static drop leg jack guarantees stable, level positioning for all your vacuum excavator needs. With sealed beam lights featuring waterproof wiring in nylon tubing, the Gladiator GV1000 meets all road compliance standards, making it an essential companion for your mud vacuum excavator.

Engine: 69.3 HP Water Cooled Diesel — Fuel Tank: 17 gal — Running Gear: Two 8,000 lb single wheel axles with oil bath hubs 4 in drop — Brakes: 12 1/4 x 3 3/8 in electric with self-charging break-away — Landing Gear: 12,000 lb static drop leg jack — Wheels: 16 in 8-hole Steel — Tires: 235/80R 16 in 14-Ply — Water Tanks: 400 gallon total (2 tanks) — Spoil Tank: 650 gallons — Door Type: Hydraulic with 8 manual wing nuts — Tank Thickness: 1/4 in — Tank Lift: Hydraulic scissor lift at 70 degree tilt — Internal Wash Out: Standard — Control Panel: Curbside — Gauges: Analog. This excavation equipment is part of the Gladiator GV1000 series, which features advanced HDD drills and a robust vacuum system, including a mud vacuum excavator that ensures efficient material removal.

The Gladiator GV1000 can be configured with various options to enhance its functionality, such as custom paint, a hot water heater, a valve exerciser, jet wash downs, a manual boom, and a hydraulic boom. This makes it an ideal choice among excavation equipment and HDD drills, especially when it is paired with a mud vacuum system and vacuum excavator.

The Gladiator GV1000 is a sturdy piece of excavation equipment that measures 21 ft 6 in in length, 98.5 in in width, and stands 7 ft 6 in height. With an empty weight of 8,500 lbs, it offers a payload capacity of around 9,900 lbs and a GVWR of 18,400 lbs, making it an ideal choice for operations involving HDD drills and featuring a mud vacuum system that enhances its performance as a vacuum excavator.
