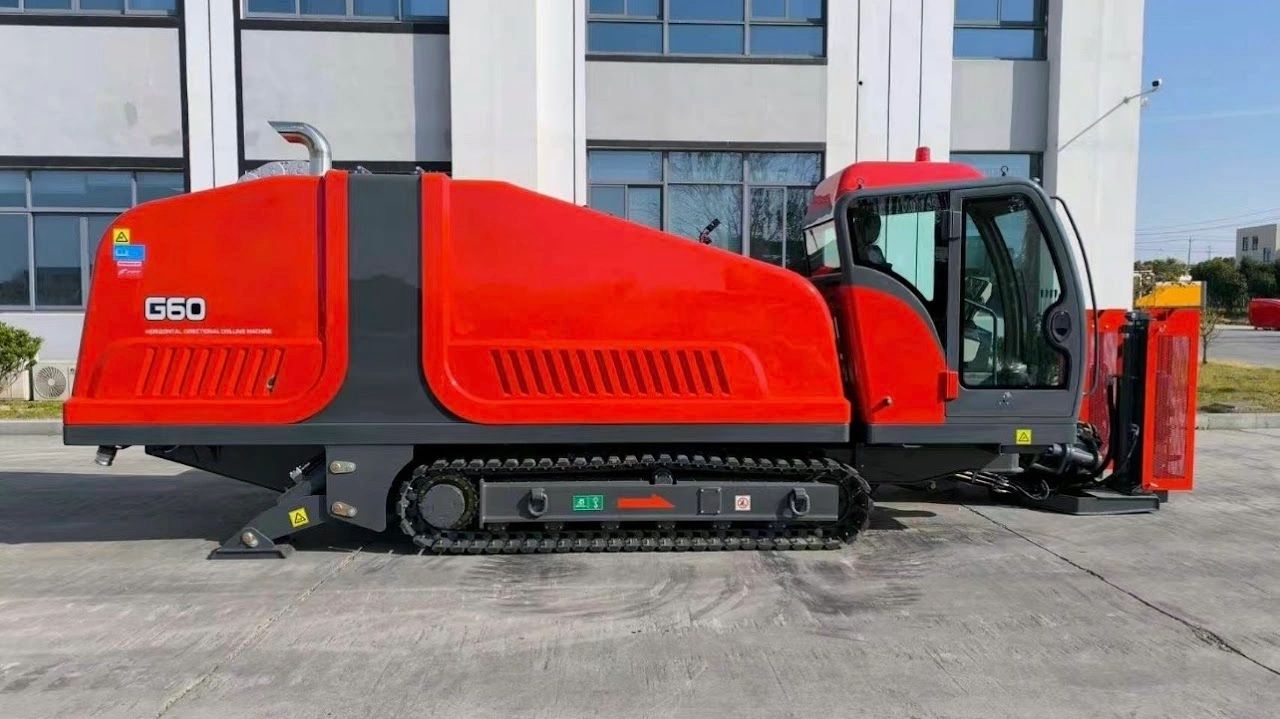

GLADIATOR G60 HORIZONTAL DIRECTIONAL DRILL

The Gladiator G60 is a robust large-capacity Horizontal Directional Drill, delivering an impressive 62,946 FT-LBS of thrust and pullback force, thanks to its 202 HP Cummins engine. This powerful machine is specifically designed for contractors engaged in major infrastructure projects, including large diameter pipeline crossings, and heavy-duty industrial utility installations, with the capability to handle long-distance bores up to 1,312 FT.

Weighing 25,353 lbs and measuring 283.46 in L × 89.37 in W × 94.48 in H, the G60 stands out as a serious large-class HDD rig. It features 9,219 FT-LBS of torque and a fluid capacity of 125 GPM @ 1080 PSI, complemented by a dual rack & pinion carriage system. This combination delivers the raw force and sustained performance that demanding trenchless drilling projects require.

The Gladiator G60 is engineered to provide an impressive 62,946 FT-LBS of thrust and pullback at 213 FT/MIN, featuring a rotary torque of 9,219 FT-LBS. Its efficient fluid system operates at 125 GPM @ 1080 PSI, achieving a rotation speed of 220 RPM. With an entry angle of 21 degrees, this machine is ideal for large diameter pipeline projects, suggesting a crossing length of up to 1,312 FT and a reaming diameter of up to 39.37 inches, making it an excellent choice for trenchless drilling and utility installations.

The Gladiator G60 is equipped with a 36-rod onboard rack that utilizes 2.87 × 118.11 inch drill rods. This larger rod diameter not only illustrates the G60's heavy-duty bore class but also caters to the higher torque and fluid pressure requirements typical of large diameter pipeline projects in trenchless drilling and utility installations.

The Gladiator G60 features a robust steel hood, a rotating cab, and standard rod loader arms designed for large diameter pipeline applications. Its dual rack & pinion carriage system ensures smooth and precise force delivery at a full class rating of 62,946 FT-LBS, maintaining bore path accuracy and operator control even in the most challenging ground conditions. This makes the G60 an excellent choice for trenchless drilling and utility installations.

The Gladiator G60 features a rotating cab that keeps operators ergonomically positioned and comfortable during extended drilling shifts, particularly in large diameter pipeline projects. Its wireless remote with hydraulic lockout shut-off ensures safe and precise control for trenchless drilling applications. Standard systems include auto anchor, mud flow adjustment, and shut-off valves, making it ideal for utility installations. Additionally, safety features such as an antifreeze tank, strike alert, and seat sensor enhance operational safety.

The Gladiator G60 is specifically designed for major gas and petroleum pipeline crossings, large diameter pipeline installations, and efficient trenchless drilling under rivers, railways, and freeways up to 1,312 FT. Additionally, it excels in long-distance horizontal bores in challenging ground conditions, making it an ideal choice for utility installations and any project requiring the 60,000+ FT-LBS class powered by a 202 HP Cummins engine.

Weight: 25,353 lbs. Dimensions: 283.46 in Length × 89.37 in Width × 94.48 in Height. This Gladiator G60 is designed for large diameter pipeline projects and is perfect for trenchless drilling and utility installations.
