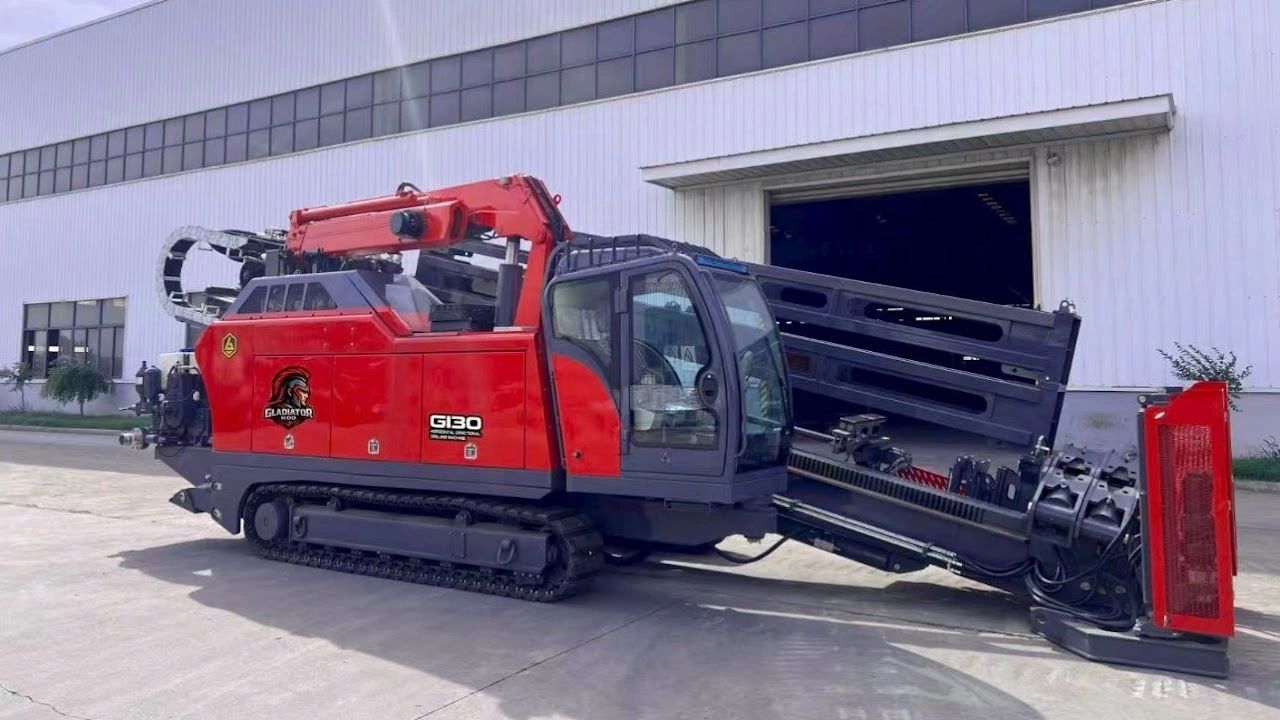

Gladiator G130 Horizontal Directional Drill

The Gladiator G130 is the flagship standard model in the Gladiator HDD lineup, renowned for its high-performance capabilities as a horizontal directional drill. This powerful machine delivers an impressive 134,885 lbs of thrust and pullback force at a speed of 213.25 ft/min. Powered by a robust 280 HP Cummins engine and producing 15,488 ft-lbs of torque, the Gladiator G130 specifications make it ideal for contractors engaged in the most demanding infrastructure projects, including oil and gas pipeline crossings, large-diameter utility installations, and crossings up to 2,624 ft. It excels in applications where maximum power and endurance are essential, solidifying its status among utility drilling equipment. Weighing 46,297 lbs and measuring 354 in L × 99 in W × 103 in H, the G130 is a full-size, heavy-duty HDD machine, equipped with a 20-foot rod rack with loader arms, a 264 GPM @ 1160 PSI fluid system, and a suggested reaming diameter of up to 47.24 inches. This makes it the most capable standard production model in the Gladiator lineup.

The Gladiator G130 specifications feature an impressive thrust of 134,885 LBS and a pullback at 213.25 FT/MIN, complemented by a rotary torque of 15,488 FT-LBS. This horizontal directional drill boasts a fluid system operating at 264 GPM @ 1160 PSI and a rotation speed of 192 RPM. With an entry angle of 21 degrees, it is ideal for utility drilling equipment, offering a suggested crossing length of up to 2,624 FT and a reaming diameter of up to 47.24 inches.

The Gladiator G130 specifications include a 24-rod onboard rack alongside a comprehensive 20-foot rod rack equipped with loader arms, utilizing 3.50 × 240 inch drill rods — the largest rod format available in the Gladiator lineup, perfectly suited for the G130's high-torque and high-force drilling requirements. This integrated loader arm system enhances rod handling efficiency during large-scale bore campaigns, making it an essential part of any utility drilling equipment arsenal.

The Gladiator G130 specifications include a robust steel hood and a 20-foot rod rack equipped with loader arms and crane as standard features. This horizontal directional drill is outfitted with onboard systems like an auto anchor, mud flow adjust, and shut-off valves. For comprehensive operator and equipment safety during utility drilling operations, the safety package encompasses an antifreeze tank, strike alert, and seat sensor, ensuring protection on every bore.

The rotating cab of the Gladiator G130 keeps operators ergonomically positioned and comfortable during extended drilling shifts. Designed as a top-tier horizontal directional drill, the G130 is operated via wireless remote with a hydraulic lockout shut-off, providing operators with precise and safe control over all drilling functions across the impressive 100,000+ LBS force range, making it a reliable choice in utility drilling equipment.

The Gladiator G130 is a powerful horizontal directional drill designed for a variety of applications, including oil and gas transmission pipeline crossings, large-diameter municipal water and sewer main installations, and major highway and freeway HDD crossings. Its specifications allow for long-distance trenchless bores up to 2,624 FT in challenging hard or mixed soil conditions, making it ideal for utility drilling equipment needs. With its robust 100,000+ LBS of directional drilling capability and a proven 280 HP Cummins powerplant, the Gladiator G130 excels in power transmission and large conduit projects.

For projects requiring force beyond 100,000 LBS — up to 2.5 million lbs — Gladiator HDD offers fully custom-engineered drill solutions, including the Gladiator G130 specifications. As a leader in horizontal directional drill technology and utility drilling equipment, Gladiator HDD encourages you to contact them directly to discuss your project requirements and the available custom build options.

The Gladiator G130 specifications include a weight of 46,297 lbs and dimensions of 354 in length, 99 in width, and 103 in height, making it an ideal choice for utility drilling equipment, particularly as a horizontal directional drill.
