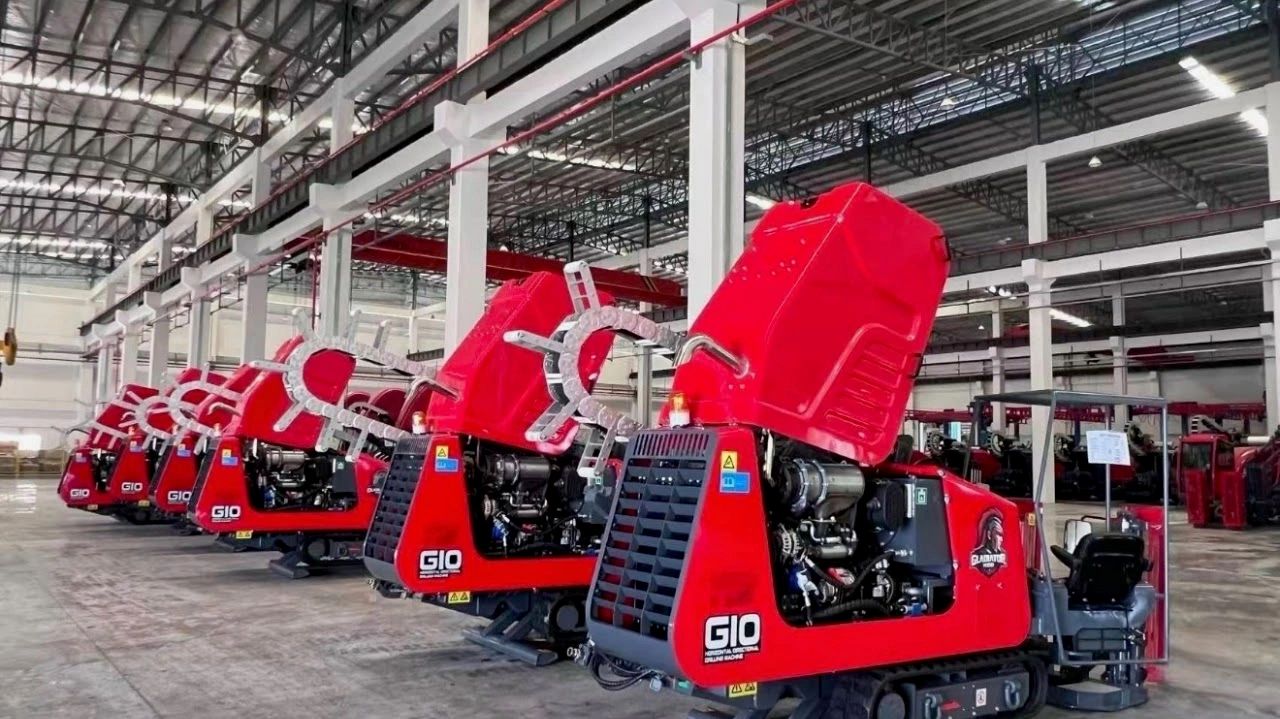

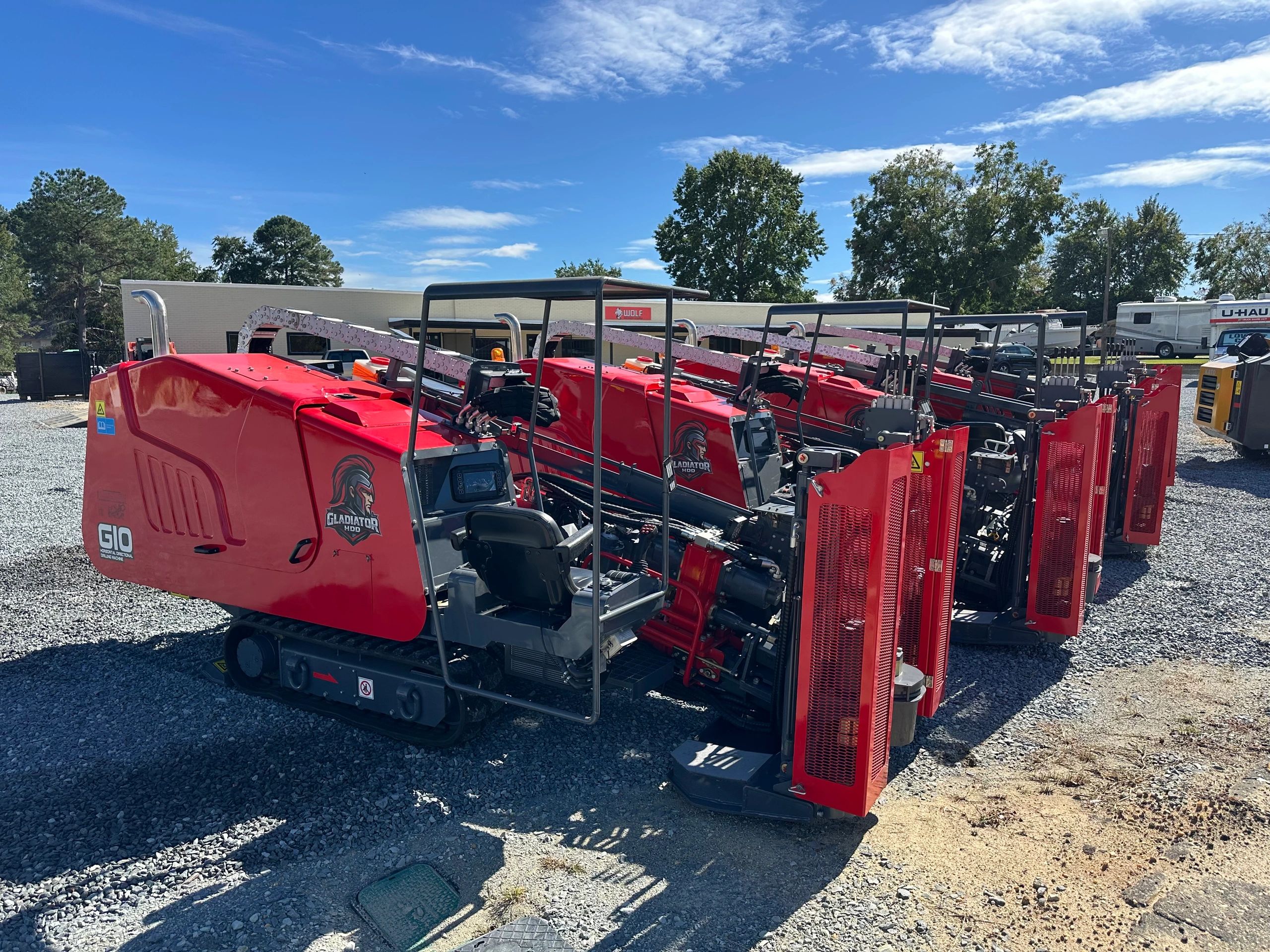

Gladiator G10 & g10L Horizontal Directional Drills

The Gladiator G10 is an entry-level horizontal directional drilling (HDD) machine designed by Gladiator HDD for contractors in need of compact utility equipment on residential and light commercial jobsites. With an impressive 11,240 FT-LBS of thrust and pullback force, this Yanmar powered drill operates with a robust 59 HP Yanmar engine, making it reliable for a variety of installations including fiber, telecom, gas, and water utilities — all while maintaining a lightweight and maneuverable design that punches well above its class.

Weighing only 8,157 lbs and measuring 166.14 in L × 57.48 in W × 62.59 in H, the G10 stands as one of the most compact yet capable machines in the Gladiator lineup. It is perfect for tight urban jobsites, residential right-of-ways, and shallow bores where access and mobility are of utmost importance.

The G10, a powerful piece of compact utility equipment, delivers 11,240 FT-LBS of thrust and pullback at a speed of 200 FT/MIN, alongside a rotary torque rating of 1,659 FT-LBS. Its fluid system operates efficiently at 20 GPM @ 870 PSI, with a rotation speed of 215 RPM. Featuring an entry angle set at 20 degrees, it offers a suggested crossing length of up to 328 FT and a recommended reaming diameter of up to 15.74 inches. This adaptability makes the G10 a versatile option for horizontal directional drilling applications, especially when powered by a Yanmar powered drill.

The G10 compact utility equipment is equipped with a 48-rod onboard rack using 1.65 × 71.85 inch drill rods, providing ample rod capacity for residential and light commercial bores without requiring a separate rod transport trailer. This Yanmar powered drill also offers optional rod loader arms to further streamline rod handling on the jobsite, making it an ideal choice for horizontal directional drilling applications.

The G10, a piece of compact utility equipment, features steel hood construction with an optional rod loader arm upgrade. This Yanmar powered drill boasts onboard systems including auto anchor for a stable setup, mud flow adjust for real-time fluid management, and shut-off valves for safe fluid control. The comprehensive safety package includes an antifreeze tank, strike alert system, and seat sensor, ensuring both operator and equipment protection during every horizontal directional drilling operation.

The G10, a Yanmar powered drill, is operated via a wireless remote with hydraulic lockout shut-off, providing operators with full control of the machine from a safe and comfortable position on the jobsite. This innovative wireless remote system enhances bore accuracy and minimizes operator fatigue during long shifts, making it an excellent choice for those utilizing compact utility equipment for horizontal directional drilling.

The Gladiator G10 is purpose-built for a variety of applications, including residential fiber and telecom installations, shallow gas and water service connections, and urban utility bores with tight right-of-way. This compact utility equipment excels in conduit bores under driveways and roads, and any compact HDD application requiring up to 328 FT of crossing length and up to 15.74 inches of reaming diameter, all powered by a reliable Yanmar powered drill.

Weight: 8,157 lbs. Dimensions: 166.14 in Length × 57.48 in Width × 62.59 in Height. This compact utility equipment features a Yanmar powered drill, perfect for horizontal directional drilling tasks.
